Pall® PD2 Powder Handling Bags

Safe and easy powder containment and transfer

Containment of pharmaceutical ingredients and materials, whether for the protection of operators, the environment or the product itself, is a continuing priority for the pharmaceutical industry.

Conventional reusable containment and delivery systems can be time-consuming and costly to clean and validate. On the other hand, cheap plastic sacks can be unsatisfactory from a cleanliness, dust generation and materials recovery perspective.

Pall PD2 powder handling bags from Pall have been developed to combine the virtues of effective containment and high product recovery with the cost savings and efficiency of single-use technologies. The PD2 film has been developed to allow the bags to be supplied in irradiated or non-irradiated formats, depending on the application requirements.


Feature Benefit
100% leak tested Robust and safe technology for powder handling applications
Tapered funnel-shaped bag and polyethylene based multi-layer film with a permanent antistatic additive in the contact layer High product recovery during operation, typically >99.95%
Flexible, transparent material, ergonomic handle Easy-of-use and process visibility
Made in ISO Class 7 cleanroom Suitable for use in all typical biopharmaceutical applications
Standard sanitary connections in 2 in., 4 in. or 6 in. sizes Broad connection compatibility and robust powder containment and process integrity
5 L to 50 L capacities as standard Suitable for a wide range of powder handling applications and volumes
125 mL samples available Off-the-shelf availability for stability studies
Lifting technology available to support powder bags around mixing applications Can form part of a total processing solution for powder handling around mixing applications
Available in both irradiated and non-irradiated formats Can be used in applications where powder requires irradiation after filling into the powder bags



* Required
Need Help?
Description

Safe and easy powder containment and transfer

Containment of pharmaceutical ingredients and materials, whether for the protection of operators, the environment or the product itself, is a continuing priority for the pharmaceutical industry.

Conventional reusable containment and delivery systems can be time-consuming and costly to clean and validate. On the other hand, cheap plastic sacks can be unsatisfactory from a cleanliness, dust generation and materials recovery perspective.

Pall PD2 powder handling bags from Pall have been developed to combine the virtues of effective containment and high product recovery with the cost savings and efficiency of single-use technologies. The PD2 film has been developed to allow the bags to be supplied in irradiated or non-irradiated formats, depending on the application requirements.


Feature Benefit
100% leak tested Robust and safe technology for powder handling applications
Tapered funnel-shaped bag and polyethylene based multi-layer film with a permanent antistatic additive in the contact layer High product recovery during operation, typically >99.95%
Flexible, transparent material, ergonomic handle Easy-of-use and process visibility
Made in ISO Class 7 cleanroom Suitable for use in all typical biopharmaceutical applications
Standard sanitary connections in 2 in., 4 in. or 6 in. sizes Broad connection compatibility and robust powder containment and process integrity
5 L to 50 L capacities as standard Suitable for a wide range of powder handling applications and volumes
125 mL samples available Off-the-shelf availability for stability studies
Lifting technology available to support powder bags around mixing applications Can form part of a total processing solution for powder handling around mixing applications
Available in both irradiated and non-irradiated formats Can be used in applications where powder requires irradiation after filling into the powder bags

Applications
Applications include contained transfer, storage or shipping of:

  • Dry powder media
  • Filter aids
  • Buffer salts
  • Excipients
Specifications

Technical Specifications

The Pall PD2 powder handling bags are constructed from a polyethylene based multi layer film with a permanent antistatic additive in the contact layers.

The film thickness is 200 micron.

Maximum load: 25 kg/handle

Sterilization Method: Gamma irradiation (maximum 50 kGy)

Supporting Hardware and Single-use Accessories

To facilitate ease-of-use of the powder handling bags, a range of hardware is available to assist in the powder addition and delivery into a process.

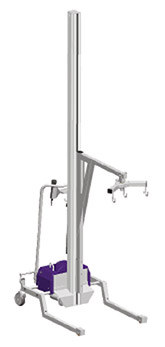

Figure 1

Powder bag lifting device


Figure 2

Powder bag filling hardware


A wide range of single-use accessories is available from Pall Life Sciences. The main items are highlighted in figure 3 and are referenced with all other accessories in the ordering information section of this datasheet. Single-use accessories include:

Closures: Sanitary clamp, gaskets, caps and plugs to securely close the powder bag.

Outer Clamps: A variety of pinch clamps to control powder movement within a powder bag.

Filling Liners: Single-use devices to facilitate filling of a powder bag.

Figure 3

Essential single-use accessories for the powder bag filling hardware



Table 1

Accessories for powder handling bags

Size 1. Outer Clamp 2. Gasket 3a/3b. End Cap 4. Sanitary Clamp
2 inch Sanitary Outlet 700009CNS
(Box Qty = 10)
4100142CNS
(Box Qty = 10)
3a: 4100140NS
(Box Qty = 10)
700154CNS
(Box Qty = 10)
4 inch Sanitary Outlet 700119CNS
(Box Qty = 10)
4100138CNS
(Box Qty = 10)
3a: 4100136NS
(Box Qty = 10)
700152CNS
(Box Qty = 10)
6 inch Sanitary Outlet 700734CNS
(Box Qty = 10)
4100134CNS
(Box Qty = 10)
3b: 700603CNS
(Box Qty = 10)
701076CNS
(Box Qty = 10)





Quality Standards

The Pall PD2 powder handling bags are:
  • 100% leak tested
  • Manufactured in house in a controlled environment (ISO 7) under a quality management systems certified to ISO 9000.
A full Validation Guide is available from Pall. The materials of construction of the powder handling bags are compliant with the following USP/Regulations:
  • ISO 10993-5 (biological compatibility)
  • USP <87> (cytotoxicity)
  • USP <88> Class VI (biological reactivity)
  • USP <661> (physicochemical tests for plastics)
  • BSE/TSE EMEA 410/01
Ordering Information

Powder Handling Bags


Order Separately
Part Number Description MOQ* Pinch
Clamp
Part
Number
MOQ Sanitary
Clamp
Part
Number
MOQ Endcap
Part
Number
MOQ Gasket
Part
Number
MOQ
PD2U8TS0000-0001 125 mL Pall PD2 powder handling bag,
2 in. sanitary outlet, irradiated
20 700009CNS 10 700154CNS 10 4101083NS 10 4100142CNS 10
PD2UATS0000-0002 5 L, Pall PD2 powder handling bag,
2 in. sanitary outlet, irradiated
20 700009CNS 10 700154CNS 10 4101083NS 10 4100142CNS 10
PD2UATS0000-0003 5 L, Pall PD2 powder handling bag,
4 in. sanitary outlet, irradiated
20 700119CNS 10 700152CNS 10 4100136NS 10 4100138CNS 10
PD2UATS0000-0004 5 L, Pall PD2 powder handling bag,
6 in. sanitary outlet, irradiated
10 700734CNS 10 701076CNS 10 700603CNS 10 4100134CNS 10
PD2UATS0000-0005 15 L, Pall PD2 powder handling bag,
2 in. sanitary outlet, irradiated
20 700009CNS 10 700154CNS 10 4101083NS 10 4100142CNS 10
PD2UATS0000-0006 15 L, Pall PD2 powder handling bag,
4 in. sanitary outlet, irradiated
20 700119CNS 10 700152CNS 10 4100136NS 10 4100138CNS 10
PD2UATS0000-0007 15 L, Pall PD2 powder handling bag,
6 in. sanitary outlet, irradiated
10 700734CNS 10 701076CNS 10 700603CNS 10 4100134CNS 10
PD2UATS0000-0008 30 L, Pall PD2 powder handling bag,
4 in. sanitary outlet, irradiated
20 700119CNS 10 700152CNS 10 4100136NS 10 4100138CNS 10
PD2UATS0000-0009 30 L, Pall PD2 powder handling bag,
6 in. sanitary outlet, irradiated
10 700734CNS 10 701076CNS 10 700603NS 10 4100134CNS 10
PD2UATS0000-0010 50 L, Pall PD2 powder handling bag,
4 in. sanitary outlet, irradiated
10 700119CNS 10 700152CNS 10 4100136CNS 10 4100138CNS 10
PD2UATS0000-0011 50 L, Pall PD2 powder handling bag,
6 in. sanitary outlet, irradiated
10 700734CNS 10 701076CNS 10 700603NS 10 4100134CNS 10

PD2U8T-0000-0001 125 mL Pall PD2 powder handling bag,
2 in. sanitary outlet, non-irradiated
20 700009CNS 10 700154CNS 10 4101083NS 10 4100142CNS 10
PD2UAT-0000-0002 5 L, Pall PD2 powder handling bag,
2 in. sanitary outlet, non-irradiated
20 700009CNS 10 700154CNS 10 4101083NS 10 4100142CNS 10
PD2UAT-0000-0003 5 L, Pall PD2 powder handling bag,
4 in. sanitary outlet, non-irradiated
20 700119CNS 10 700152CNS 10 4100136NS 10 4100138CNS 10
PD2UAT-0000-0004 5 L, Pall PD2 powder handling bag,
6 in. sanitary outlet, non-irradiated
10 700734CNS 10 701076CNS 10 700603CNS 10 4100134CNS 10
PD2UAT-0000-0005 15 L, Pall PD2 powder handling bag,
2 in. sanitary outlet, non-irradiated
20 700009CNS 10 700154CNS 10 4101083NS 10 4100142CNS 10
PD2UAT-0000-0006 15 L, Pall PD2 powder handling bag,
4 in. sanitary outlet, non-irradiated
20 700119CNS 10 700152CNS 10 4100136NS 10 4100138CNS 10
PD2UAT-0000-0007 15 L, Pall PD2 powder handling bag,
6 in. sanitary outlet, non-irradiated
10 700734CNS 10 701076CNS 10 700603CNS 10 4100134CNS 10
PD2UAT-0000-0008 30 L, Pall PD2 powder handling bag,
4 in. sanitary outlet, non-irradiated
20 700119CNS 10 700152CNS 10 4100136NS 10 4100138CNS 10
PD2UAT-0000-0009 30 L, Pall PD2 powder handling bag,
6 in. sanitary outlet, non-irradiated
10 700734CNS 10 701076CNS 10 700603NS 10 4100134CNS 10
PD2UAT-0000-0010 50 L, Pall PD2 powder handling bag,
4 in. sanitary outlet, non-irradiated
10 700119CNS 10 700152CNS 10 4100136CNS 10 4100138CNS 10
PD2UAT-0000-0011 50 L, Pall PD2 powder handling bag,
6 in. sanitary outlet, non-irradiated
10 700734CNS 10 701076CNS 10 700603NS 10 4100134CNS 10



Liners and Chutes


Part Number Description MOQ*
PD2UATS0000-0050 Pall PD2 liner, 5 L, 2 in. sanitary outlet, irradiated 20
PD2UATS0000-0051 Pall PD2 liner, 5 L, 4 in. sanitary outlet, irradiated 20
PD2UATS0000-0052 Pall PD2 liner, 5 L, 6 in. sanitary outlet, irradiated 20
PD2UATS0000-0070 Pall PD2 chute, 4 in., 4 in. sanitary outlet, irradiated 20
PD2UATS0000-0071 Pall PD2 chute, 4 in., 2 in. sanitary outlet, irradiated 20

*MOQ = Minimum order quantity

Powder Transfer Filling Support Hardware


Part Number Description
705285 Powder bag filling support, 4 in. sanitary connection, with integral legs
705286 Leg extender kit for Powder bag filling support
705287 Small base plate (14.6 in. diameter) for powder bag filling support
705288 Large base plate (20 in. diameter) for powder bag filling support
705363 Clamp assembly, 2 in. sanitary connection
705364 Clamp assembly, 6 in. sanitary connection
705337 Retaining O-ring (supplied in box qty = 10)



Accessories


Part Number Description Size Minimum Order Quantity
700009CNS Pinch clamp, white PA 150 mm 10
700154CNS Sanitary clamp, white PA 2 in. 10
4100142CNS Gasket, white silicone 2 in. 10
4101083NS Cup end cap, natural HDPE 2 in. 10
700204CNS Tyvek cap 2 in. 10
700119CNS Pinch clamp, white PA 220 mm 10
700152CNS Sanitary clamp, white PA 4 in. 10
4100138CNS Gasket, white silicone 4 in. 10
4100136NS Cup end cap, natural HDPE 4 in. 10
700214CNS Push-in dust cap, LDPE 4 in. 10
700125CNS Tyvek cap 4 in. 10
700734CNS Pinch clamp, white PA 320 mm 10
701839CNS Clamp gripper reinforced PA N/A 10
701076CNS Sanitary clamp, white PA 6 in. 10
4100134CNS Gasket, white silicone 6 in. 10
700603CNS End cap, natural HDPE 6 in. 10
700604CNS Tyvek cap 6 in. and 8 in. 10
