AcroPrep™ Advance 96-Well Filter Plates for Multiplexing

Superior Bead Recovery and Low Levels of
False Positives Ensure Assay Reproducibility

  • Smooth well wall provides efficient bead recovery, ensuring reproducible results lot after lot
  • High performance membrane does not trap microspheres in the membrane matrix
  • In serological assays, Supor® membrane effectively removes IgG complexes, thus reducing nonspecific reactivity of the microspheres and reducing false positives
  • New well design results in faster, more uniform filtration rates across the plate with reduced hold-up volume
  • New outlet tip geometry minimizes sample leakage and loss during incubation steps so that acquisition times are not affected
  • Intrinsic plate and membrane properties minimize target loss from non-specific binding
“Pall Laboratory products are designed for laboratory applications only. This product is not approved for use in medical, clinical, surgical or other patient applications. If you require further assistance in product selection for your chosen application, please contact Labcustomersupport@pall.com or call 1-800-521-1520."


* Required
Need Help?

AcroPrep Advance Filter Plates for Aqueous Filtration

AcroPrep Advance Filter Plates for Multiplexing

For multiplex assays (10/pkg)

AcroPrep Advance Filter Plates for Protein purification

Spare Parts and Accessories

Adapter collar for centrifugation (2/pkg)
Cap mat for incubation (5/pkg)
Description

Superior Bead Recovery and Low Levels of
False Positives Ensure Assay Reproducibility

  • Smooth well wall provides efficient bead recovery, ensuring reproducible results lot after lot
  • High performance membrane does not trap microspheres in the membrane matrix
  • In serological assays, Supor® membrane effectively removes IgG complexes, thus reducing nonspecific reactivity of the microspheres and reducing false positives
  • New well design results in faster, more uniform filtration rates across the plate with reduced hold-up volume
  • New outlet tip geometry minimizes sample leakage and loss during incubation steps so that acquisition times are not affected
  • Intrinsic plate and membrane properties minimize target loss from non-specific binding
“Pall Laboratory products are designed for laboratory applications only. This product is not approved for use in medical, clinical, surgical or other patient applications. If you require further assistance in product selection for your chosen application, please contact Labcustomersupport@pall.com or call 1-800-521-1520."
Applications
  • Bead-based multiplexing assays
  • Flow cytometry
Specifications

Materials of Construction

  • Filter Media: PP/PE non-woven (polypropylene/polyethylene) and Supor (polyethersulfone) membrane
  • Plate Housing: Polyproylene
  • Lid: Polystyrene

Dimensions

  • Length: 12.8 cm (5.0 in.)
  • Width: 8.6 cm (3.4 in.)
  • Height With Lid: 1.8 cm (0.7 in.)
  • Height Without Lid: 350 μL, 1.4 cm (0.6 in.)

Well-Bottom Area

  • 0.25 cm2

Recommended Working Volume

  • 350 μL: < 300 μL

Recommended Operating Vacuum

  • > 25.4 cm Hg (10 in. Hg)

Recommended Centrifugal Force

  • 1,500 x g

Typical Processing Time

  • Vacuum: 2 seconds
  • Centrifuge: < 2 minutes

Typical Hold-Up Volume

  • Vacuum: 5 μL
  • Centrifuge: 3 μL
Performance

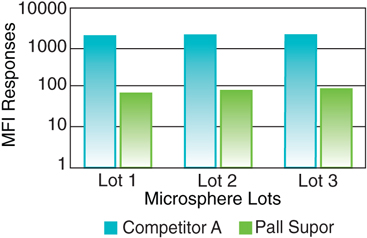

Pall Supor Membrane Reduces the Occurrence of False Positive Results




The serological immunoassays were performed with multiple lots of xMAP microspheres in both the Pall Supor and Competitor M filter plates. The results from these filter plates were read with one Luminex LX100 Instrument. The responses represent the reactivity toward microspheres without proteins coupled to them to maximize the indications of false positive “non-specific” reactivity by the microspheres. In all lots of microspheres tested, the Pall Supor filter plates exhibited a marked reduction in non-specific reactivity than competitive plates. Data generated in conjunction with Luminex Corporation.
Type
Filter Plate
Use
Multiplexing, High throughput filtration
