2544 Series Filter Assemblies

Maximum Acceptable Working Pressure:
500 psi (34.5 bar)

Bypass Valve:
25 psid (1.724 bar)

Seals:
Nitrile–Compatible with petroleum oils, water-oil emulsions and water-glycol

Temperature Range:
-45°F to 225°F (-43°C to 107°C)

Filter Element Collapse Pressure:
150 psid (10 bar)

Materials:

• Aluminum head and nipple
• Aluminum and steel bypass valve
• Carbon steel canister and core assembly

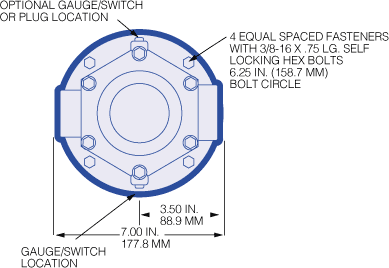

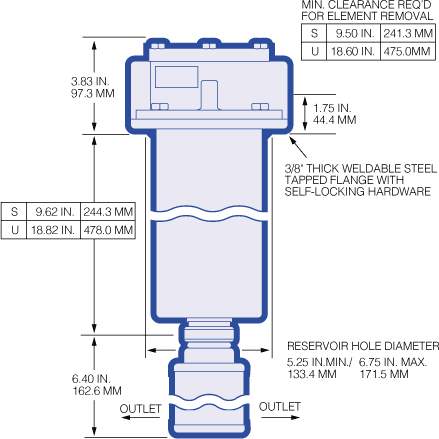

Dimensional Drawings









Figure 1. Housing Pressure Drop using fluid with 0.9 S.G. Housing Pressure drop is directly proportional to specific gravity.

Figure 2. Bypass Valve Pressure Drop using fluid with 0.9 S.G. Bypass valve pressure drops are directly proportional to specific gravity.



Element Pressure Drop Factor
Multiply actual flow rate times factor to determine pressure drop with fluid at 150 SUS (32 cSt), 0.9 S.G.
Correct for other viscosities by multiplying new viscosity in SUS/150 x new S.G/0.9.

2544 Series Element P factor (psid/gpm)
Length	KP	KN	KS	KT
9"	0.12	0.08	0.06	0.05
19"	0.06	0.04	0.03	0.02

Housings, Vessels, or Assemblies

Element P/N:	HC	2544F			H
			Table2	Table3

 Note: Choose from the options in the following tables to compile the specific Product Number.

TABLE 1: PORT OPTIONS
Code	Port Option
A20	1-1/4" SAE straight thread O-ring boss per SAE J514H
A24	1-1/2" SAE straight thread O-ring boss per SAE J514H
B20	1-1/4" NPT
B24	1-1/2" NPT





TABLE 2: FILTER ELEMENT OPTIONS
Code	ßx  200	ßx(c)=1000
KP	3	5
KN	6	7
KS	12	12
KT	25	22





TABLE 3: LENGTH OPTIONS*
Assembly Code	Element Code**
S	9
U	19
* Use code in second column for element part no. ** Nominal length in inches.



TABLE 4: INDICATOR OPTIONS
Code	Device
G	Pressure gauge (25 psi), other port plugged (1/8" NPT)
8	Pressure switch (15 psi) N.O. S.P.S.T. screw terminals, other port plugged (1/8" NPT)
2	Pressure gauge (25 psi) and pressure switch (15 psi) N.O. S.P.S.T. screw terminals
B	Port plugs (1/8" NPT)





TABLE 5: SECONDARY PORT OPTIONS
Code	Description
OMIT	No secondary port
20*	1-1/4" port (same port style as primary port)
* Available only with A24 and B24 primary ports.





TABLE 6: OUTLET OPTIONS
Code	Description
OMIT	1-5/8" discharge
D	Diffuser with adapter
