F310 Series 'T' Filters

Filter Housing

• Maximum Allowable Working Pressure: 70 bar (1015 psi)
• Rated Fatigue Pressure: 0 - 40 bar (580 psi) per NFPA T2.6.1 R2-2001 CAT C/90, verified by testing at 0 - 46.5 bar (675 psi)
• Fluid Compatibility: Compatible with all petroleum oils, water glycols, water-oil emulsions and most synthetic hydraulic and lubrication fluids
• Temperature Range:
  • Nitrile Seals: -43 ?C to 120 ?C (-46 ?F to 250 ?F)
  • Fluorocarbon Seals: -29 ?C to 120 ?C (-20 ?F to 250 ?F) 60 ®C (140 ®F) maximum in HWCF or water glycol fluids
• Bypass Valve Settings:
  • 'B' option ® 3.4®0.3 bard (50 psid)
  • 'G' option ® 4.5®0.5 bard (65 psid)
• Indicator Pressure Settings:
  • 2.4 bard (35 psid) for 'B'option
  • 3.4 bard (50 psid) for 'G'option
• Materials of Construction:
  • Head - SG Iron
  • Bowl - Aluminium

Filter Element

• Filter Element Collapse Pressure: 10 bard (145 psid)
• Filter Element Construction: Pall Ultipor® filter medium, a propreitary composite structure with a fixed graded pore construction of inert, inorganic fibres impregnated and bonded with specifically formulated resins. Polyamide endcaps. Corrosion protected carbon steel core.

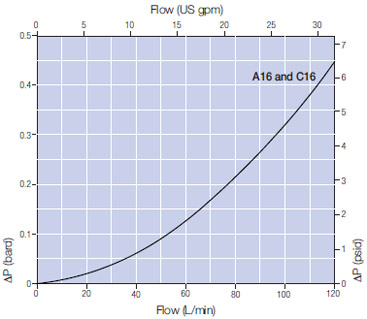

Pressure Drop Information

Housing pressure drop using fluid with 0.9 S.G.
Housing pressure drop is directly proportional to specific gravity.

HCG300 Filter Elements ® bard/1000 L/min (psid/US gpm)

Length Code	KN	KS	KD	KT
04	5.35 (0.29)	3.48 (0.19)	2.68 (0.15)	2.43 (0.13)
08	2.75 (0.15)	1.83 (0.10)	1.41 (0.08)	1.26 (0.07)

Multiply actual flow rate times factor in table above to determine pressure drop with fluid at 32 cSt (150 SUS), 0.9 S.G. Correct for other fluids by multiplying new viscosity in cSt/32 (SUS/150) x new S.G./0.9. Note: factors are per 1000 L/min and per 1 US gpm.

Sample ?P calculation

F310 Series 4 in. length housing with C16 ports using KN grade media. Operating conditions 100 L/min flow rate using a hydraulic fluid at 20 cSt and specific gravity (s.g.) 1.2.

Total Filter ?P

• ?P housing + ?P element
• (0.32 x 1.2/0.9) bard (housing)
  • ((100 x 5.35/1000) x 20/32 x 1.2/0.9) bard (element)
• 0.427 bard (housing) + 0.445 bard (element)
• 0.873 bard (12.7 psid)

Housings, Vessels, or Assemblies

Housing P/N: H [1] F310 [2] 16 [3] [4] [5] [6] [7] X160
Element P/N: HCG300F [4] [5] [1]
Seal P/N: G300SK [1]

Table 1: Seal Options

Code	Fluid Service	Seal Material
H	Petroleum, Water-Oil Emulsions, Water glycol	Nitrile
Z	Specified Synthetics	Fluorocarbon

Table 2: Housing Port Style Options

Code	Port Style
C	BSP threads
A	O-Ring boss

Table 3: Filter Element Options

Code	®x(c) ?1000
KN	7
KS	12
KD	19
KT	22
++	No Element

Table 4: Length Options

Housing Code	Element Code	Length L*
R	4	127 mm ( 5 in. )
S	8	219 mm ( 8.62 in. )

* Nominal length

Table 5: Valve Options

Code	Option
B	3.4 ®0.3 bar (50 psid)
G	4.5 ®0.5 bar (65 psid)

Table 6: Differential Pressure Indicator Options

Code	Indicator	'H' Dim.
1	Machined port with plastic shipping plug Indicator must be installed prior to operation Only available to distributors	-
B	Bleed plug and seal in place of indicator	16
D	Visual indicator, red button rises 5mm on actuation Remains up until manually reset	23
C	Electrical switch - normally closed, automatic reset Connection: deutsch DT042P Reed switch operation suitable for low current applications	56
P	Visual indicator with thermal lockout and manual reset No signal below 0 ®C , signal above 27 ®C Indicator includes clear plastic cover and internal dirt protection	23
R	Electrical switch-SPDT with neon light indicator Connection: plug and socket as per DIN43650, ISO 4400, Hirschmann type (24 volt DC)	90
U	Electrical switch - normally closed, automatic reset Connection: AMP junior timer connector Reed switch operation suitable for low current applications	47

Table 7: Indicator Mount Options

Code	Option
1	Side
2	Top
