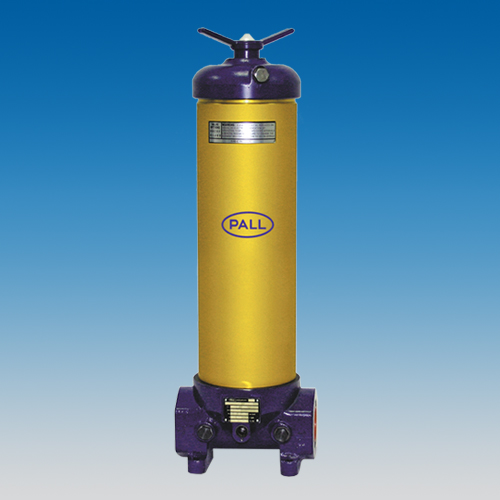

UR699 Series Ultipleat® SRT Return Line Filters

Notes and Specifications Filter Housing

• Flows to 835 L/min (220 US gpm)
• Pressures to 28 bar (400 psi)
• Port Size 2” and 2½”
• Rated Fatigue Pressure:
  0-23 bar (330 psi) per NFPA T2.06.01R2-2001 CAT C/90/*(1 million cycles), verified by testing at 0-27 bar (392 psi) for 1 million cycles.
• Filter Element Burst Pressure:
  10 bard (150 psid)
• Fluid Compatibility:
  Compatible with all petroleum oils and most water glycols, water-oil emulsions, and synthetic hydraulic and lubrication fluids
• Temperature Range:
  Fluorocarbon Seals: -29 °C to 120 °C (-20 °F to 248 °F)
  60 °C (140 °F) maximum in HWCF or water glycol fluids
• Bypass Valve Setting:
  1.7 bard (25 psid) or
  4.5 bard (65 psid)
• Indicator Pressure Setting:
  1.1 bard (16 psid) or
  3.5 bard (50 psid)
• Materials of Construction:
  Head, cover: Steel/cast iron
  Tube: Aluminium
• Filter Element:
  Inorganic fibers impregnated and bonded with epoxy resins. Polymer endcaps. Anti-static media design

Dimensional Drawings

Dimensions in mm (inches)

The equipment has been assessed in accordance with the guidelines laid down in The European Pressure Directive 97/23/EC and has been classified within Sound Engineering Practice S.E.P. Suitable for use with Group 1 and 2 fluids only. Consult Sales for other fluid gas group suitability.

Pressure Drop Information

Housing pressure drop using fluid with 0.9 S.G.

Housing pressure drop is directly proportional to specific gravity.

• Keeps fluids the cleanest, longest, for the greatest value
• Provides consistent, reliable, protection of system components over the full service life of the filter element
• Rapidly achieves and sustains required fluid system cleanliness
• Delivers maximum filter capacity in the smallest footprint
• Prevents electrostatic discharge from damaging your filter and degrading your fluid

Element Pressure Drop

610 Series Filter Elements – bard/1000 L/min (psid/US gpm)

Length Code	AZ	AP	AN	AS	AT
20	1.31 (0.072)	0.56 (0.030)	0.43 (0.023)	0.31 (0.017)	0.19 (0.011)
40	0.70 (0.038)	0.30 (0.016)	0.23 (0.013)	0.17 (0.009)	0.10 (0.006)

Multiply actual flow rate times factor in table below to determine pressure drop with fluid at 32 cSt (150 SUS), 0.9 S.G. Correct for other fluids by multiplying new viscosity in cSt/32 (SUS/150) x new S.G./0.9.
Note: factors are per 1000 L/min and per 1 US gpm.

Sample ΔP calculation

UR699 Series 40” length housing with F40 ( 2.5” ISO 6162) split flange ports using AN grade media. Operating conditions 500 L/min flow rate using a hydraulic fluid of 50 cSt and specific gravity (s.g.) 1.2.

Total Filter ΔP
= ΔP housing + ΔP element
= (0.28 x 1.2/0.9) bard (housing)
+ ((500 x 0.23/1000) x 50/32 x 1.2/0.9) bard (element)
= 0.37 (housing) + 0.24 bard (element)
= 0.61 bard (8.8 psid)

Housings, Vessels, or Assemblies

For new installations, select one complete part number from each section below

Section 1 Housing P/N: UR 669 C [Table A] [Table 4] 9

Note: Pall Athalon filter housings are supplied without filter elements or warning devices fitted. Never operate the filter unless a filter element is fitted and all warning device ports are sealed.

Note: Z indicates fluorocarbon seals are standard. Other options are available; contact Pall. Housing P/N designates indicator port fitted with a plastic shipping plug.

Table A

Port & Length Options

Tables 1, 2 and 3

CA3220Z

CA3240Z

CC3220Z

CC3240Z

CD3220Z

CD3240Z

CD4020Z

CD4040Z

CF3220Z

CF3240Z

CF4020Z

CF4040Z

Table 1: Housing Port Options

Code	Port Style
A	SAE J1926 straight thread
C	BSP ISO 228 threads
D	Flange J518C code 61
F	ISO 6162 split flange

Table 2: Port Size

Code	Port Style
32	2” nominal
40	2 ½” nominal

Table 3: Housing Length and Seal Options

Code	Length and Seal Material
20Z	20” nominal length, fluorocarbon seals
40Z	40” nominal length, fluorocarbon seals

Table 4: Bypass Valve and Service Options

Code	Bypass Valve and Service Type
A	1.7 bard (25 psid) bypass valve, cover service
G	4.5 bard (65 psid) bypass valve, cover service
N	No bypass valve

Seal Kit P/N: UR699SKZ

*Other seal material options are available; Contact Pall.

Section 2 Element P/N: UE 610[Table 5] [Table 3]

Note: Z indicates fluorocarbon seals are standard. Other options are available; contact Pall.

Table 5: Filter Element Options

Code	ßx(c) ≥2000 based on ISO 16889	CST Rating*
AZ	3	07/04/01
AP	5	11/08/03
AN	7	13/09/04
AS	12	15/11/06
AT	25	16/14/08

* CST: Cyclic Stabilization Test to determine filter rating under stress conditions, based on SAE ARP4205

Section 3

(At least one Differential Pressure Indicator or ‘B’ type blanking plug must be ordered)

Differential Pressure Indicator P/N: RC [Table 6] Z [Table 7] Z

Note: If no differential pressure indicator is selected, ‘B’ type blanking plug (P/N HC9000A104Z) must be ordered separately and fitted to replace the plastic shipping plug.

Note: Z indicates fluorocarbon seals are standard. Other options are available; contact Pall.

Table 6: Indicator Options

Code	Brass Option indicator
A218M	Electrical switch (SPDT) with Hirschmann connector
A218R	Electrical switch (SPDT) with Hirschmann connector with Red and Green LED indicators
A219D	Visual indicator

Table 7: Indicator Pressue Setting Option*

Code	Valve
084	For ‘A’ Valve Option - Housings (1.1 bard - 16 psid)
091	For ‘G’ and ‘N’ Valve Options - Housings (3.5 bard - 50 psid)

*Other setting options are available; contact Pall.

Length Code	Overall length mm (in)	Element Removal Clearance mm (in)	Empty Weight kg (lb)
20	762 (30)	443 (17.5)	26 (58)
40	1270 (50)	951 (37.5)	36 (80)
