9850/51/54 Series Filter Assemblies

Features

• Optional Differential Pressure Devices
• Ductile Iron Head
• Forged Steel Bowl
• Optional Drain Port and Plug
• Full Flow Fast Response Bypass Valve
• O-Ring Seals
• Ultipor® III Element

Maximum Acceptable Working Pressure:

4061 psi (280 bar)

Fatigue Pressure Rating:

(NFPA/T2.6.1-1974 category 2/90)
3500 psi (241 bar)

Typical Burst Pressure:

18,000 psi (1240 bar)

Temperature Range:

Nitrile seals -45°F to 225°F(-43°C to 107°C)
Fluorocarbon seals -20°F to 250°F (-29°C to 120°C)
140°F (60°C) maximum in HWCF or water-glycol fluids

Dry Weights:

R length– 9.7 lbs. (4.4 kg)
S length– 12.1 lbs. (5.5 kg)
T length– 15.2 lbs. (6.9 kg)

Filter Element Collapse Pressure:

9800– 290 psid (20 bar)
9801– 3000 psid (207 bar)
9804-150 psid (10 bar)

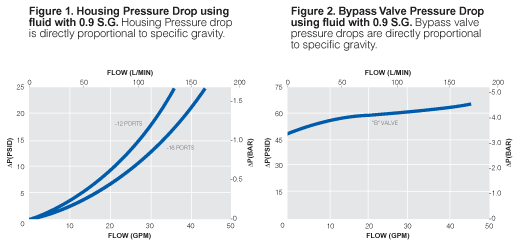

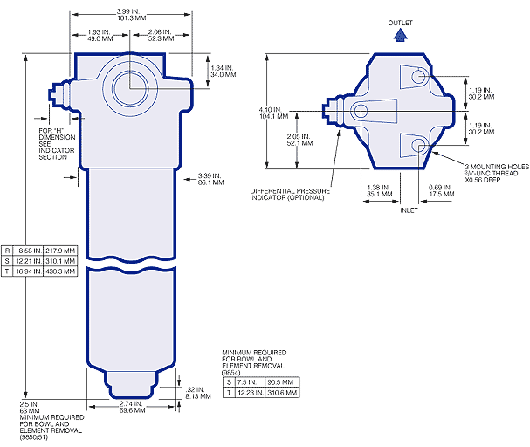

Dimensional Drawings

Element Pressure Drop Factor

Multiply actual flow rate times factor to determine pressure drop with fluid at 150 SUS (32 cSt), 0.9 S.G.
Correct for other viscosities by multiplying new viscosity in SUS/150 x new S.G/0.9.

9800/9804 Series Element P factor (psid/gpm)
Length	KZ	KP	KN	KS	KT
4" *	1.83	0.72	0.56	0.40	0.26
8"	0.95	0.37	0.29	0.21	0.13
13"	0.58	0.23	0.18	0.13	0.08

*9800 only







9801 Series Element P factor (psid/gpm)
Length	DP	DT
4"	1.82	0.84
8"	0.90	0.39
13"	0.56	0.17

Housings, Vessels, or Assemblies

Assembly P/N: H [TABLE 1] 985 [TABLE 2][TABLE 3][TABLE 4][TABLE 5][TABLE 6][TABLE 7][TABLE 8][TABLE 9][TABLE 10]

Element P/N: HC 980 [TABLE 2] F [TABLE 5][TABLE 6][TABLE 1]

Seal Kit P/N: H9800SK [TABLE 1]

Note: Choose from the options in the following tables to compile the specific Product Number.

TABLE 1: SEAL OPTIONS
Code	Seals
H	Nitrile
Z	Fluorocarbon

TABLE 2: ELEMENT OPTIONS
Code	Rating
0	290 psid (standard)
1	3000 psid (high collapse)
4	150 psid (coreless)

TABLE 3: PORT STYLE OPTIONS
Code	Port Style
A	SAE J514 straight thread
B	NPT tapered pipe thread

TABLE 4: PORT SIZE OPTIONS
Code	Size	Port Style
12	3/4"	A
16	1"	A, B

TABLE 5: FILTER ELEMENT OPTIONS
Code	ßx  200	ßx(c)=1000
KZ	<1	2.5
KP	3	5
KN	6	7
KS	12	12
KT	25	22
DP*	3	5
DT*	17	15
*9851 only.

TABLE 6: LENGTH OPTIONS*
Assembly Code	Element Code**
R***	4
S	8
T	13
* Use code in second column for element part no. ** Nominal length in inches. *** 9850/51 only.

TABLE 7: BYPASS VALVE OPTIONS
Code	Description
B	50 psid- 9850/54 only
W	Non-bypass- 9851 only

TABLE 8: DIFFERENTIAL PRESSURE DEVICE OPTIONS
Code	Description
P	Visual indicator with thermal lockout
D	Visual indicator with no thermal lockout
L	Electrical switch (SPDT) with 6" leads
T	Electrical switch with DIN connector
M	'T' type switch with matching wiring cap
S	Electrical switch with MS receptacle
V	Combined visual/electrical with DIN connector
B	Bleed plug and seal in place of indicator
2	'P' and 'L'
3	'P' and 'S'

TABLE 9: SPECIAL OPTIONS
Code	Description
L	Indicator location (left or right when facing inlet port)
R	Left is standard

TABLE 10: DRAIN PORT OPTIONS
Code	Description
Omit	No drain port
P	Drain port
