Temperature Range:

Nitrile seals -45°F to 225°F (-43°C to 107°C)
Fluorocarbon seals -20°F to 250°F (-29°C to 120°C)
140°F (60°C) maximum in HWCF or water-glycol fluids

Maximum Operating Pressure:

150 psi (10 bar)

Typical Burst Pressure:

1200 psi (83 bar)

Filter Element Collapse Pressure:

290 psid (20 bar) minimum

Fluid Compatibility:

Petroleum oils, water glycols, water-oil emulsions, and HWCF.
Fluorocarbon seals required for industrial phosphate esters, diesters, and specified synthetics. 140°F (60°C) max in water containing fluids.

Materials of Construction:

Aluminum alloy head, cover and canister

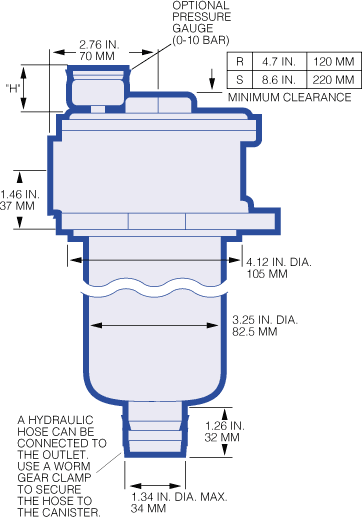

Dimensional Drawings













Figure 1. Housing Pressure Drop using fluid with 0.9 S.G. Housing Pressure drop is directly proportional to specific gravity.

Element Pressure Drop Factor.

Multiply actual flow rate times factor to determine pressure drop with fluid at 150 SUS (32 cSt), 0.9 S.G.
Correct for other viscosities by multiplying new viscosity in SUS/150 x new S.G/0.9.

6200 Series Element P factor (psid/gpm)
Length	KZ	KP	KN	KS	KT
4"	1.1	0.56	0.30	0.19	0.14
8"	0.53	0.27	0.15	0.10	0.07

Housings, Vessels, or Assemblies

Assembly P/N:

H

6220 A 16

B

Table1

Table2

Table3

Table4

Element P/N:	HC	6200	F
				Table2	Table3	Table1


Note: Choose from the options in the following tables to compile the specific Product Number.

TABLE 1: SEAL OPTIONS
Code	Seals
H	Nitrile
Z	Fluorocarbon

TABLE 2: FILTER ELEMENT OPTIONS
Code	ßx  200	ßx(c)=1000
KZ	<1	2.5
KP	3	5
KN	6	7
KS	12	12
KT	25	22

TABLE 3: LENGTH OPTIONS*
Assembly Code	Element Code**	Assembly Dry Wt. (lbs.)
R	4	2.2
S	8	2.4
* Use code in second column for element part no. ** Nominal length in inches.



TABLE 4: P DEVICE OPTIONS
Code	P Option	H Dim.
G	Pressure gauge (0-150 psi)	1.25" (32 mm)
B	Plugged 1/8" NPT gauge port supplied	0.5" (12 mm)
8	Electrical absolute pressure switch. Electrical ratings suffix 24 volts DC–24 DC 220 volts AC-220 AC	2.7" (69 mm)
