The FlexBowl single-cartridge filter pressure vessel system has been specifically designed for the challenging ultrapure chemical applications used in semiconductor manufacture. It meets Pall’s same high standards for cleanliness, purity, compatibility, and mechanical strength as its Megaplast™ housings and Kleen-Change® assemblies. The system’s extremely flexible design allows for easier and safer filter handling, and reduces cost of ownership.
The key to the flexibility of the FlexBowl system design is a universal manifold, which can accommodate a fully disposable capsule assembly or a reusable housing. Either of these connects easily to the manifold with a quarter turn of the locking ring.
Pall offers the FlexBowl pressure vessel system with many housing and capsule assembly options to maximize flexibility. Housings are available in 4 in (102 mm), 10 in (254 mm), and 20 in (508 mm) sizes. The 10 in (254 mm) housing is designed to fit standard 10 in (254 mm) filter cartridges with a diameter of up to 3.25 in (82.5 mm) and a nominal length of 10 in (254 mm). Standard semiconductor industry inlet and outlet connection fittings for this system are also offered in a variety of different sizes and styles.
Watch a video to learn more
The key to the flexibility of the FlexBowl system design is a universal manifold, which can accommodate a fully disposable capsule assembly or a reusable housing. Either of these connects easily to the manifold with a quarter turn of the locking ring.
Pall offers the FlexBowl pressure vessel system with many housing and capsule assembly options to maximize flexibility. Housings are available in 4 in (102 mm), 10 in (254 mm), and 20 in (508 mm) sizes. The 10 in (254 mm) housing is designed to fit standard 10 in (254 mm) filter cartridges with a diameter of up to 3.25 in (82.5 mm) and a nominal length of 10 in (254 mm). Standard semiconductor industry inlet and outlet connection fittings for this system are also offered in a variety of different sizes and styles.
Watch a video to learn more
Materials
Manifolds
- Manifold: PFA
- Locking Ring: Polyetherimide (PEI)
Bowl
- Bowl: PFA
- Ring Nut: PVDF
- O-ring:
H1 : FEP-encapsulated fluoroelastomer
H11F : Kalrez2
Housing Head
- Housing Head: PFA
- O-ring: Kalrez2
Connections
- Inlet/Outlet: 1", 3/4"
- Vent/Drain: 1/2", 1/4"
Maximum Operating Temperature: 95 °C (203 °F)
Maximum Operating Pressure:
0.56 MPa (80 psid) @ 30 °C (86 °F)
0.28 MPa (40 psid) @ 95 °C (200 °F)
2 Kalrez is a registered trademark of DuPont Performance Elastomers.

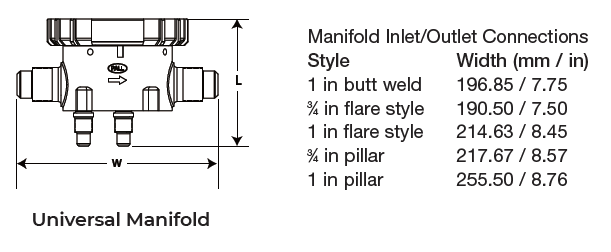

Dimensions

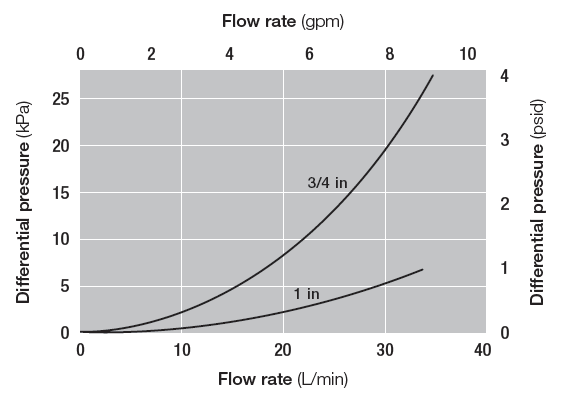

Typical Flow Characteristics – 1 cP fluid, 20 ºC Dimensions
Housings, Vessels, or Assemblies
| Part Number | Description | Connections Inlet, Outlet / Vent, Drain |
Nominal Length (L) (mm/in.) |
| Complete Housing System | |||
| FBMH04T17E71H1 | 4 in. complete housing system | 1 in. Pillar / 1⁄2 in. Pillar | 396.14 / 15.60 |
| FBMH04T13E71H1 | 4 in. complete housing system | 3⁄4 in. Pillar / 1⁄2 in. Pillar | 396.14 / 15.60 |
| FBMH04T17E51H1 | 4 in. complete housing system | 1 in. flare style / 1⁄2 in. flare style | 351.04 / 13.82 |
| FBMH04T13E51H1 | 4 in. complete housing system | 3⁄4 in. flare style / 1⁄2 in. flare style | 351.04 / 13.82 |
| FBMH04T16EBWH1 | 4 in. complete housing system | 1 in. butt weld / 1⁄2 in. butt weld | 335.69 / 13.22 |
| FBMH04T174E51H13 | 4 in. complete housing system | 1 in. flare style / 1⁄4 in. flare style | 346.96 / 13.66 |
| FBMH04T134E51H13 | 4 in. complete housing system | 3⁄4 in. flare style / 1⁄4 in. flare style | 346.96 / 13.66 |
| FBMH1T17E71H1 | 10 in. complete housing system | 1 in. Pillar / 1⁄2 in. Pillar | 528.64 / 20.81 |
| FBMH1T13E71H1 | 10 in. complete housing system | 3⁄4 in. Pillar / 1⁄2 in. Pillar | 528.64 / 20.81 |
| FBMH1T17E51H1 | 10 in. complete housing system | 1 in. flare style / 1⁄2 in. flare style | 483.54 / 19.04 |
| FBMH1T13E51H1 | 10 in. complete housing system | 3⁄4 in. flare style / 1⁄2 in. flare style | 483.54 / 19.04 |
| FBMH1T16EBWH1 | 10 in. complete housing system | 1 in. butt weld / 1⁄2 in. butt weld | 468.19 / 18.43 |
| FBMH1T174E51H13 | 10 in. complete housing system | 1 in. flare style / 1⁄4 in. flare style | 479.54 / 18.88 |
| FBMH1T134E51H13 | 10 in. complete housing system | 3⁄4 in. flare style / 1⁄4 in. flare style | 479.54 / 18.88 |
| FBMH2T17E71H1 | 20 in. complete housing system | 1 in. Pillar / 1⁄2 in. Pillar | 784.14 / 30.87 |
| FBMH2T13E71H1 | 20 in. complete housing system | 3⁄4 in. Pillar / 1⁄2 in. Pillar | 784.14 / 30.87 |
| FBMH2T17E51H1 | 20 in. complete housing system | 1 in. flare style / 1⁄2 in. flare style | 744.54 / 29.31 |
| FBMH2T13E51H1 | 20 in. complete housing system | 3⁄4 in. flare style / 1⁄2 in. flare style | 744.54 / 29.31 |
| FBMH2T16EBWH1 | 20 in. complete housing system | 1 in. butt weld / 1⁄2 in. butt weld | 723.69 / 28.49 |
| Manifold Only | |||
| FBMT17E71 | Manifold only | 1 in. Pillar / 1⁄2 in. Pilla | 144.01 / 5.67 |
| FBMT13E71 | Manifold only | 3⁄4 in. Pillar / 1⁄2 in. Pillar | 144.01 / 5.67 |
| FBM17E51 | Manifold only | 1 in. flare style / 1⁄2 in. flare style | 136.14 / 5.36 |
| FBM13E51 | Manifold only | 3⁄4 in. flare style / 1⁄2 in. flare style | 136.14 / 5.36 |
| FBM16EBW | Manifold only | 1 in. butt weld / 1⁄2 in. butt weld | 129.79 / 5.1 1 |
| Housing Kit | |||
| FBHT04EBWH1 | 4 in. G2 bowl | n/a / 1⁄2 in. butt weld | |
| FBHT044E51H1 | 4 in. G2 bowl | n/a / 1⁄4 in. flare style | |
| FBHT04E51H1 | 4 in. G2 bowl | n/a / 1⁄2 in. flare style | |
| FBHT04E71H1 | 4 in. G2 bowl | n/a / 1⁄2 in. Pillar | |
| FBHT1EBWH1 | 10 in. G2 bowl | n/a / 1⁄2 in. butt weld | |
| FBHT14E51H1 | 10 in. G2 bowl | n/a / 1⁄4 in. flare style | |
| FBHT1E51H1 | 10 in. G2 bowl | n/a / 1⁄2 in. flare style | |
| FBHT1E71H1 | 10 in. G2 bowl | n/a / 1⁄2 in. Pillar | |
| FBHT2EBWH1 | 20 in. G2 bowl | n/a / 1⁄2 in. butt weld | |
| FBHT2E51H1 | 20 in. G2 bowl | n/a / 1⁄2 in. flare style | |
| FBHT2E71H1 | 20 in. G2 bowl | n/a / 1⁄2 in. Pillar | |
3 The manifold vent and drain connections are 1⁄2 in. flare style. The housing bowl vent is 1⁄4 in. flare style.
