Dollinger Retrofit LG Coalescer from Pall

Specifications:

• Efficency = 1 ppbw by modified CAGI-400
• Capture Efficiency = 99.96% at 0.3 micron
• Max Temp = 180°F (82.2°C) with no water
  = 140°F (60°C) with water present
• Element Burst > 30psid (2.07 bar)
• Element Weight = 4.5 lbs (2.04 kg)
• Materials of Construction:
  • Medium: Glass Fibre
  • End Caps: Stainless Steel
  • Core and Outer Cage: Tin Plated Carbon Steel
• Full element surface treatment for rapid liquid drainage

Global Presence – Local Support

Pall is a global company with offices in Asia, Americas, Europe, and the Middle East. This global presence gives us the ability to provide local commercial or technical support whenever or wherever there is a customer need.

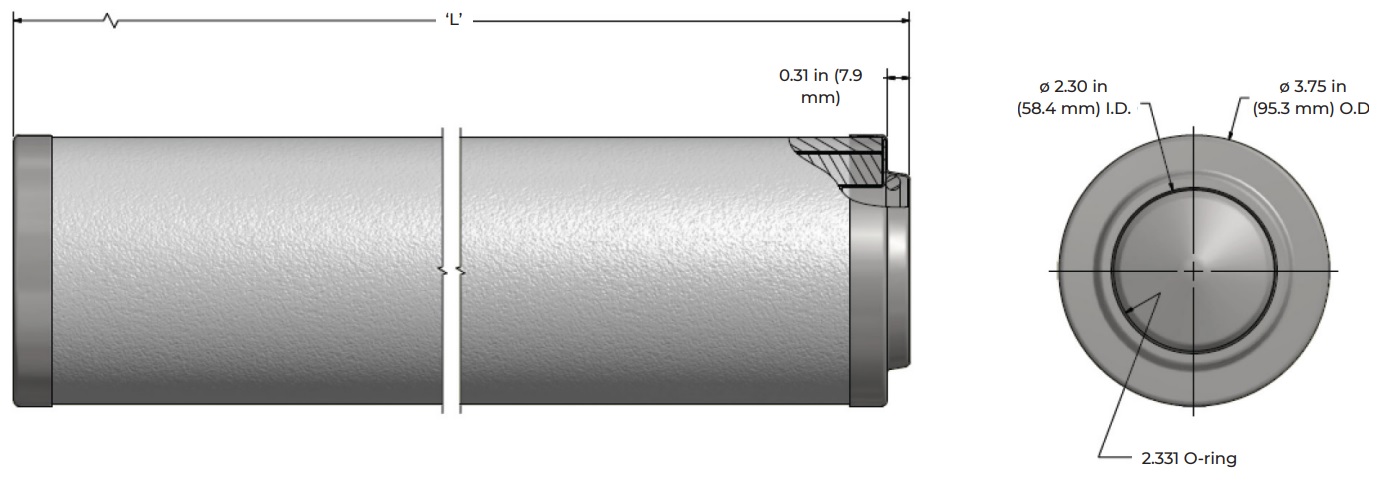

Nominal Element Dimensions

Coalescers

Liquid/Liquid Phase separation, Coalescence

Pall Retrofit p/n: RDLLG430GFV   Replaces: Dollinger p/n: 79-1906
Pall Retrofit p/n: RDLLG424GFV   Replaces: Dollinger p/n: 79-1198

Length	Part Number
24.76 [628.9]	RDLLG424GFV
30.76 [781.3]	RDLLG430GFV
