Liquid/Gas Coalescers

The Liquid/Gas coalescers can eliminate virtually all solids and liquids in a gas stream, significantly reduce maintenance costs, and maintain superior equipment performance.

Pall offers the following Liquid/Gas coalescers options:

  • SepraSol™ Coalescers

Designed to deliver high-efficiency performance in critical applications, SepraSol coalescers have the capability to process several times more liquid per unit area than conventional media. These Liquid/Gas coalescers offer reduced CAPEX and OPEX with a smaller installation footprint.

  • SepraSol™ Plus Coalescers

The SepraSol Plus media can process several times more liquid per unit area of media than conventional media and often eliminates the need for upstream bulk separation equipment. The Pall SepraSol Plus media can handle higher levels of liquid per unit area and requires significantly fewer cartridges to remove liquid and solids from gases.

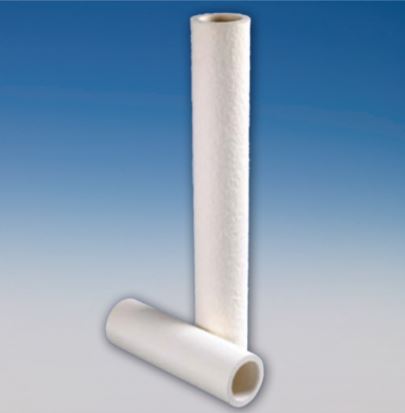

  • Medallion™ Coalescers

Pall’s Medallion line of Liquid/Gas coalescers is ideal for applications that require less critical aerosol removal efficiency. These filters enhance process performance and reduce operation and maintenance costs.

Liquid/Gas Coalescers | Pall Shop

Medallion
Medallion
SepraSol
SepraSol
SepraSol Plus
SepraSol Plus

Order Products

SepraSol - CC3LG02H13 product photo

SepraSol L/G Coalescer, 30in length, 2.75in diameter, 99.999% at 0.3µm aerosol rating, 99.99% >0.3µm solids removal rating

Product ID: CC3LG02H13
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
0.83 bar
Change out pressure drop (psid)
12 psid
Maximum differential pressure rating (bar)
2.75 bar
Maximum differential pressure rating (psid)
40 psid
See All Attributes
CC3LGA7H13 product photo

CC3LGA7H13

Product ID: CC3LGA7H13
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
0.83 bar
Change out pressure drop (psid)
12 psid
Maximum differential pressure rating (bar)
2.75 bar
Maximum differential pressure rating (psid)
40 psid
See All Attributes
SepraSol Plus - CS604LGBH product photo

SepraSol Plus L/G Coalescer, 40in length, 6in diameter, 99.999% at 0.3µm aerosol rating, 99.7% >0.3µm solids removal rating

Product ID: CS604LGBH
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
SepraSol Plus - CS604LGBH1 product photo

SepraSol Plus L/G Coalescer, 40in length, 6in diameter, 99.999% at 0.3µm aerosol rating, 99.7% >0.3µm solids removal rating

Product ID: CS604LGBH1
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
SepraSol Plus - CS604LGBH13 product photo

SepraSol Plus L/G Coalescer, 40in length, 6in diameter, 99.999% at 0.3µm aerosol rating, 99.7% >0.3µm solids removal rating

Product ID: CS604LGBH13
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
SepraSol Plus - CS604LGDH13 product photo

SepraSol Plus L/G Coalescer, 40in length, 6in diameter, 99.999% at 0.3µm aerosol rating, 99.7% >0.3µm solids removal rating

Product ID: CS604LGDH13
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
SepraSol Plus - CS604LGH product photo

SepraSol Plus L/G Coalescer, 40in length, 6in diameter, 99.999% at 0.3µm aerosol rating, 99.7% >0.3µm solids removal rating

Product ID: CS604LGH
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
SepraSol Plus - CS604LGH1 product photo

SepraSol Plus L/G Coalescer, 40in length, 6in diameter, 99.999% at 0.3µm aerosol rating, 99.7% >0.3µm solids removal rating

Product ID: CS604LGH1
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
CS604LGH13 product photo

CS604LGH13

Product ID: CS604LGH13
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
Medallion HP - CS604LGT2DH13 product photo

Medallion HP L/G Coalescer, 40in length, 6in diameter, 99.999% at 0.3µm aerosol rating, 99.7% >0.3µm solids removal rating

Product ID: CS604LGT2DH13
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
2 bar
Maximum differential pressure rating (psid)
30 psid
See All Attributes
Medallion HP - CS604LGT2H13 product photo

Medallion HP L/G Coalescer, 40in length, 6in diameter, 99.999% at 0.3µm aerosol rating, 99.7% >0.3µm solids removal rating

Product ID: CS604LGT2H13
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
2 bar
Maximum differential pressure rating (psid)
30 psid
See All Attributes
Retrofit - RDLLG430GFV product photo

L/G Coalescer Retrofit, 30.76in length, 3.75in diameter

Product ID: RDLLG430GFV
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
2 bar
Maximum differential pressure rating (psid)
30 psid

This part is no longer available. Please contact our customer service for more information.

12 Items
  • 1

Description

Liquid/Gas coalescers can significantly decrease maintenance costs while maintaining the performance of processing equipment, such as compressors, turbines, burners, and expensive catalysts and desiccants over the traditional separators. The hydrophobic and oleophobic treatment in Pall's Liquid/Gas coalescer prevents sparging, allows rapid drainage, reduces vessel size, and increases flow capacity, making it recover very quickly from liquid slugs to withstand fluctuations in process conditions and save operating costs.



Why choose Pall’s Liquid/Gas Coalescer Separators?



The Liquid/Gas coalescer filter separators offer a range of benefits, including:

  • Accelerated liquid drainage
  • High liquid load handling capability
  • Quicker recovery from high-volume liquid slugs
  • Fewer element changeouts
  • Reduced saturated pressure drop
  • Minimized vessel diameter due to fewer restrictions on annular velocity
  • Consistent, high-efficiency liquid removal
  • High solids removal efficiency
  • Optimum protection of downstream equipment
  • Less liquid losses
  • Enhanced product consistency and quality
  • Reduced capital, operating, and maintenance costs with increased uptime
  • No need for upstream bulk removal equipment

Applications/Use

Liquid/Gas coalescers are used to remove solid and liquid contaminants from gas streams and are used in various applications in the oil & gas and chemical industries.

Oil & Gas

  • Midstream Mol-sieve Dehydration
  • Refinery Amine Systems
  • Refinery Molecular Sieve Drier
  • LNG Stabilization Column
  • Midstream Acid Gas
  • Midstream Gas Pipeline Compressors
  • Midstream Glycol Filtration
  • Midstream Merc Rem Unit (MRU)
  • LNG Acid Gas
  • LNG Other
  • Midstream Black Powder

Chemicals & Polymers

  • Midstream Mol-sieve Dehydration
  • Refinery Amine Systems
  • Refinery Molecular Sieve Drier
  • LNG Stabilization Column
  • Midstream Acid Gas
  • Midstream Gas Pipeline Compressors
  • Midstream Glycol Filtration
  • Midstream Merc Rem Unit (MRU)
  • LNG Acid Gas
  • LNG Other
  • Midstream Black Powder
  • Chemicals Raw Material/Gas/Air
  • Petrochem Selective gas/gas separation
  • Amine/Benfield /Other Solvent loop
  • Molecular sieve protection
  • Poly Commodity Intermediate (Fluids)
  • Poly Engraved & Special Intermediate (Fluids)

Food & Beverage

  • Removal of aerosols such as hydrocarbon liquids and water
  • Prevent violation of strict air pollution regulations during venting
  • Prevent damage to equipment such as gas flow meters and compressors
  • Prevent fouling of catalysts

FAQs

1. How are Pall’s Liquid/Gas Coalescers superior to the conventional separators?



Pall's Liquid/Gas coalescers can take care of high liquid loads with >1000 ppmv and reduce up to 90% of aerosols. The elements are chemically treated to recover very quickly from slugs of liquid and better withstand fluctuations in process conditions. The coalescers save operating and maintenance costs and maintain the performance of processing equipment over the traditional separators.



2. Can Pall’s Liquid/Gas Coalescers filter aerosols as small as 0.01 microns?



Yes. Pall's Liquid/Gas coalescing separators can remove aerosols at a level as small as 0.01 microns from gases.



3. What are the benefits of hydrophobic and oleophobic treatment in the Pall Liquid/Gas Coalescers?



The hydrophobic and oleophobic treatment in Pall's liquid gas separators prevents sparging, allows rapid drainage, reduces vessel size, and increases flow capacity, helping it recover very quickly from slugs of liquid and better withstand fluctuations in process conditions.
