AquaSep® Coalescers

Pall AquaSep® Coalescers offer low-cost solutions in applications that demand the separation of particulate matter and dispersed phase liquid from continuous phase liquid. These separation solutions are useful in the oil and gas, chemicals, and polymer industries.

Features:

  • Non-disarming, hydrophobic medium
  • Smaller assembly
  • Integrated stack design

AquaSep® Liquid/Liquid Coalescers | Pall Shop

Order Products

AquaSep Plus - LCS06B1AH product photo

AquaSep Plus L/L Coalescer, 6in length, 2.75in diameter, ≤15ppm separation level, 1μm Beta 200 solids removal rating

Product ID: LCS06B1AH
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
150 °F
Maximum Operating Temperature (C)
66 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
AquaSep EL - LCS2ELBH product photo

AquaSep EL L/L Coalescer, 20in length, 3.75in diameter, ≤15ppm separation level

Product ID: LCS2ELBH
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
140 °F
Maximum Operating Temperature (C)
60 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
AquaSep EL - LCS06ELBH product photo

AquaSep EL L/L Coalescer, 6in length, 2.75in diameter, ≤15ppm separation level, 24μm Beta 50 solids removal rating

Product ID: LCS06ELBH
Unit of Measure
4/EA
Min Order Qty
4
Maximum Operating Temperature (F)
140 °F
Maximum Operating Temperature (C)
60 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
AquaSep XS - LCS06PXSH product photo

AquaSep XS L/L Coalescer, 6in length, 2.75in diameter, ≤15ppm separation level, 11μm Beta 5000 solids removal rating

Product ID: LCS06PXSH
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
140 °F
Maximum Operating Temperature (C)
60 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
AquaSep Plus - LCS2B1AH product photo

AquaSep Plus L/L Coalescer, 20in length, 3.75in diameter, ≤15ppm separation level

Product ID: LCS2B1AH
Unit of Measure
8/EA
Min Order Qty
8
Maximum Operating Temperature (F)
150 °F
Maximum Operating Temperature (C)
66 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
AquaSep Plus - LCS4B1AH product photo

AquaSep Plus L/L Coalescer, 40in length, 3.75in diameter, ≤15ppm separation level

Product ID: LCS4B1AH
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
150 °F
Maximum Operating Temperature (C)
66 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
AquaSep XS - LCS2PXSH product photo

AquaSep XS L/L Coalescer, 20in length, 3.75in diameter, ≤15ppm separation level

Product ID: LCS2PXSH
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
140 °F
Maximum Operating Temperature (C)
60 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
AquaSep EL - LCS4ELBH product photo

AquaSep EL L/L Coalescer, 40in length, 3.75in diameter, ≤15ppm separation level

Product ID: LCS4ELBH
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
140 °F
Maximum Operating Temperature (C)
60 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes
AquaSep XS - LCS4PXSH product photo

AquaSep XS L/L Coalescer, 40in length, 3.75in diameter, ≤15ppm separation level

Product ID: LCS4PXSH
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
140 °F
Maximum Operating Temperature (C)
60 °C
Change out pressure drop (bar)
1.03 bar
Change out pressure drop (psid)
15 psid
Maximum differential pressure rating (bar)
3.5 bar
Maximum differential pressure rating (psid)
50 psid
See All Attributes

Description

Unlike conventional glass-fiber coalescers, the AquaSep® coalescers come with non-disarming media that increases coalescer water-removal efficiency and offers superior product quality. It makes these water coalescing separators ideal for applications that need to remove entrained water in liquid hydrocarbons and chemicals and applications involving surfactants and liquids with lower interfacial tension.



The AquaSep® coalescers are available in the following variants.



  • AquaSep® Plus Coalescers

AquaSep® Plus L/L coalescers are designed to offer continuously efficient liquid separation and particle removal for enhanced fluid quality, coupled with low maintenance and disposal costs. The non-disarming media offers protection from surfactants, and the prefilter stage removes particulates leading to extended service life. The integrated stack design allows for a high flow rate, resulting in a small economic size with fewer elements for efficient water removal from fuel. The filters are compatible with a wide range of refined products, including diesel, gasoline, lube oils, kerosene, petrochemicals, aromatics, and LPG.



The AquaSep® Plus L/L coalescers remove entrained water in hydrocarbons to a level as low as 15 ppmv over a wide range of conditions, including interfacial tension as low as 3.0 dyne/cm and inlet water concentration as high as 3% water by volume (i.e., 30,000 ppmv)



AquaSep® Plus oil and water separators remove oil from water over a broad range of conditions in horizontal and vertical configurations.



  • AquaSep® XS Coalescers

AquaSep® XS coalescers efficiently separate two liquid phases with a multistage system starting with filtration for particulate matter removal followed by either a single-stage horizontal coalescer or two-stage integrated vertical coalescer. The filter removes free water to a level as low as 15 ppmv over a wide range of conditions, including interfacial tension less than 20 dynes/cm and inlet liquid contaminant concentration as high as 10%.

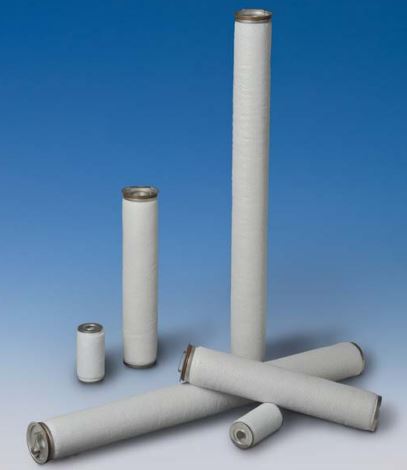

  • AquaSep® EL Coalescers

AquaSep® EL liquid/liquid coalescer system is a lower-cost solution to separate higher solids and medium to coarse emulsions versus competitive cartridge coalescers, mesh pack coalescers, sand beds, and electrostatic precipitators (ESPs). Its cost-effectiveness is due to the ability of each coalescing element to process a higher flow in a higher solids environment while still providing superior effluent quality. The AquaSep EL element provides superior continuous removal of liquid contaminant for existing cartridge coalescer systems, thereby making it a more reliable solution than competitive offerings.



Why choose Pall AquaSep® Water Separator Coalescers?

  • Integrated stack system for high performance
  • Low-cost separation
  • Low maintenance and disposal costs
  • Extended service life with non-disarming, hydrophobic medium
  • Smaller assembly size

Products Highlights:

  • Low-cost water separation
  • Extended service life
  • High-performance results

Applications

Pall’s AquaSep® coalescers are used in many applications in the oil and gas, chemicals, and polymer industries.

Oil & Gas

  • Liquid fuel treatment
  • Refinery final product
  • Refinery molecular sieve drier
  • Refinery react/catalyst protect
  • Upstream condensate
  • Refinery alkylation
  • Refinery condensate dewatering
  • Water removal from hydrocarbon condensates before stabilization, fractionation, or pipeline transport
  • Removal of oil from sour water to protect sour water stripping (SWS) as well as downstream sulfur plant and water treatment operations
  • Water removal from high solids coker fractionates
  • Performance upgrades to existing cartridge or mesh pack coalescers, sand beds and ESPs
  • General oil/water separation needs across upstream, midstream, and downstream processes
  • Removal of water from refined products with or without the additive package, including gasoline, diesel, jet, and LPG
  • Separation of water from hydrocarbon condensates, refinery intermediates, naphtha, propane, propylene
  • Removal of water from aromatics
  • Separation of oil from water

Chemicals & Polymers

  • Naphtha/Propane/Propylene Feed
  • Petrochemical final product (Liquid)
  • Chemical Final Product (Liquid)
  • Chemical Raw Material – Liquid
  • Poly Commodity Intermediate (Fluids)
  • Poly Engineered & Special Intermediate (Fluids)
  • Water removal from hydrocarbon condensates before stabilization, fractionation, or pipeline transport
  • Removal of oil from sour water to protect sour water stripping (SWS) as well as downstream sulfur plant and water treatment operations
  • Water removal from high solids coker fractionates
  • Performance upgrades to existing cartridge or mesh pack coalescers, sand beds and ESPs
  • General oil/water separation needs across upstream, midstream, and downstream processes
  • Removal of water from refined products with or without the additive package, including gasoline, diesel, jet, and LPG
  • Separation of water from hydrocarbon condensates, refinery intermediates, naphtha, propane, propylene
  • Removal of water from aromatics
  • Separation of oil from water

FAQs

1. Why should I use Pall AquaSep® Coalescers?

Pall AquaSep® Coalescers can efficiently separate liquids with low interfacial tensions. Here are some of the benefits –

  • Low-cost separation
  • Low maintenance and disposal costs
  • Extended service life with non-disarming, hydrophobic medium
  • Integrated stack system for high performance
  • Smaller assembly size



2. How do Pall AquaSep® Coalescers offer extended service life?

Unlike conventional coalescers, Pall AquaSep coalescers do not contain glass fiber and do not disarm in the presence of surfactants. Further, the prefilter stage in the AquaSep® coalescers removes particulates. This results in extended service life.



3. What are the applications of Pall AquaSep® Coalescers?

Pall AquaSep® coalescers are used in a wide range of applications in refineries, oil and gas, and chemicals and polymer industries that involve the separation of water and oil. These are specifically designed for liquids with low interfacial tension. For detailed application information, please check the ‘Applications/Use’ section on this page.



4. What are the different variants available under AquaSep® coalescers?

Pall AquaSep Coalescers are available in the following variants –

  • AquaSep® Plus
  • AquaSep® XS
  • AquaSep® EL
