SepraSol™ Liquid/Gas Coalescers

Pall SepraSol™ Liquid/Gas Coalescers offer high-efficiency liquid and solids removal from contaminated gases and lower maintenance and operating costs.

Features:

  • Patented oleophobic/hydrophobic media treatment
  • High-efficiency media and draining materials
  • Highly effective filtration area

Order Products

SepraSol - CC3LG02H13 product photo

SepraSol L/G Coalescer, 30in length, 2.75in diameter, 99.999% at 0.3µm aerosol rating, 99.99% >0.3µm solids removal rating

Product ID: CC3LG02H13
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
0.83 bar
Change out pressure drop (psid)
12 psid
Maximum differential pressure rating (bar)
2.75 bar
Maximum differential pressure rating (psid)
40 psid
See All Attributes
CC3LGA7H13 product photo

CC3LGA7H13

Product ID: CC3LGA7H13
Unit of Measure
1/EA
Min Order Qty
1
Maximum Operating Temperature (F)
180 °F
Maximum Operating Temperature (C)
82 °C
Change out pressure drop (bar)
0.83 bar
Change out pressure drop (psid)
12 psid
Maximum differential pressure rating (bar)
2.75 bar
Maximum differential pressure rating (psid)
40 psid
See All Attributes

Description

Clean, aerosol-free gas is critical to equipment reliability and the economic efficiency of gas processing, petroleum refining, and chemical processing applications. Pall SepraSol™ liquid/gas coalescers remove liquids and solids from contaminated gases with high efficiency and reduce operating and maintenance costs.



SepraSol™ liquid/gas coalescers come with the patented oleophobic/hydrophobic treatment that lowers the medium's surface energy and promotes rapid drainage of the coalesced liquids. It enhances the capacity for liquid challenges and results in improved performance allowing for smaller systems, lower pressure drop, and improved ability to recover from liquid slugs.



Pall’s SepraSol liquid/gas coalescers eliminate virtually all solids and liquids in a gas stream. Downstream liquid levels are as low as 0.003 ppmw1, and the solids removal rating is 0.3 micron (μm) (99.99% efficiency)2



1 Test conditions used to measure efficiency area are as follows:

Flow rate: 900 SCF/minute per 30 in. element at 37.8°C (100°F) and 6.9 bar (100 psig)

Liquid inlet: 50 ppmw oil

2 Per sodium chloride test



Why choose Pall SepraSol™ Coalescers?

  • More rapid liquid drainage
  • Lower saturated pressure drop
  • Faster recovery from liquid slugs
  • Reduced capital and operating costs
  • Improved product quality and consistency
  • Minimized vessel diameter due to fewer restrictions on annular velocity
  • Fewer element changeouts needed
  • High solids removal efficiency
  • Reduced liquid losses
  • Optimum protection of downstream equipment

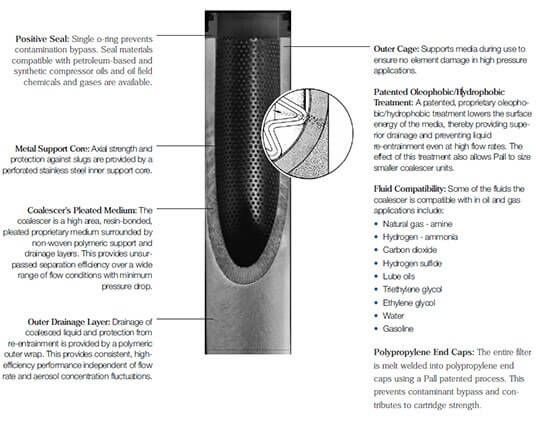

Additional Features of the Pall SepraSol Liquid/Gas Coalescing Filter

Product Highlights:

  • Reduced capital, maintenance, and operating costs
  • Improved product quality and consistency
  • Improved availability

Performance

Performance Specification



Solid Removal Rating

0.3 μm (99.99%)

Temperature Rating

180 °F (82 °C)

150 °F (65 °C) with Water

Clean & Saturated Pressure Drop

Sized to your specification

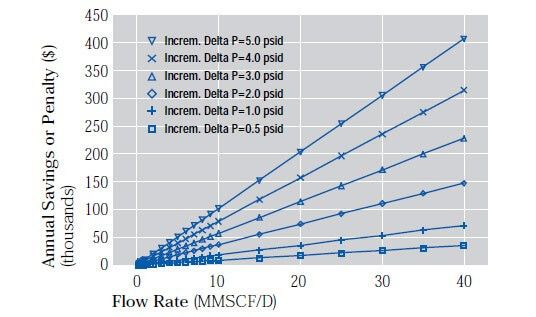

Figure 1: Effect of Pressure Drop on Compressor Operating Costs5

5 Conditions: Delta P on inlet pressure

Inlet Pressure = 20 psia

Outlet Pressure = 200 psia

Gas compressed is methane

Costs based on $0.07/kwhr



Pall Corporation applies a patented oleophobic/hydrophobic chemical treatment on all of its SepraSol liquid/gas coalescers. This allows the coalescers to operate at a lower saturated pressure drop. As shown in Figure 1, a small difference in saturated pressure drop can result in significant savings in operating costs.



About Coalescer Efficiency Ratings



The measurement of the efficiency and the pressure drop of a coalescer should reflect operating conditions. Many manufacturers of coalescers measure efficiency using the dioctyl phthalate (DOP) test. The DOP test was not originally designed to measure the performance of a coalescer under operating conditions seen in the oil and gas industry. Rather, the DOP test is performed under the following conditions:

  • Measures only capture efficiency and does not indicate how much liquid is at the coalescer outlet. It is the outlet concentration, which will indicate whether downstream equipment and processes are vulnerable to damage.
  • Measures only the percent removal of DOP aerosols that are 0.3 μm compared to a range of sizes normally seen in oil and gas applications.
  • Measures the removal of DOP, a liquid not typically found in oil and gas applications.
  • Performed under a vacuum, not typical of operating conditions.
  • Performed on a dry coalescing element, the effectiveness of a coalescer should be measured when a coalescer is completely saturated.

Pall has developed a test called the Liquid Aerosol Separation Efficiency (LASE) Test to specially measure the performance of a coalescer under operating conditions. The table below compares the LASE and the DOP tests. For further details on the LASE test, see Pall literature GAS-4300b, "Recent Developments in Performance Ratings of Gas/Liquid Coalescers ."



Pall LASE Test vs. Conventional DOP



Pall LASE Test

DOP Test

LASE Advantage

Efficiency Rating

Measures ppmw of total downstream aerosol concentration

Measures only the capture efficiency of 0.3 μm DOP aerosols

Specifies performance based on total liquid removal

Test Contaminant

Polydispersed 20 wt. compressor lube oil (size range 0.1-1.0 μm)

Monodispersed dioctyl phthalate (size range at 0.3 μm only)

Closely simulates actual process contamination

Downstream Contaminant Measurement

Full flow membrane sampling of all size contaminants

Indirect light scattering of 0.3 μm contaminants

Directly measures the amount of all liquid downstream

Pressure Conditions

Performed under positive pressure conditions

Performed under vacuum

More closely reflects actual process pressure conditions

Cartridge Condition

Performed on a saturated cartridge

Performed on dry cartridge

Reflects actual process cartridge service

Pressure Drop Measurement

Measures operating saturated cartridge pressure drop

Measures dry cartridge pressure drop

Provides a more realistic service pressure drop

Ordering Information

Nominal Cartridge Dimensions



Part Number

Outer Diameter (mm/in.)

Length (mm/in.)

Surface Area (m2/ft2)

CC3LGA7H133

70/2.75

762/30

0.88/9.5

CC3LGB7H134

70/2.75

762/30

0.88/9.5



3 CC3LGA can replace CC3LG7 in existing Pall coalescing housings.

4 Completely compatible with amines and ammonia.

Applications

SepraSol™ liquid-gas coalescers are widely used in various oil & gas, chemicals, and polymer industry applications, including –

  • Protecting compressors and turbines
  • Protecting low and ultra-low NOx burners by cleaning fuel gas
  • Removing lubrication oil, water, compressor wear products, corrosion products, and other solids from effluent gas streams
  • Minimizing foaming tendencies in sweetening and dehydration units
  • Minimizing amine and glycol losses downstream of gas sweetening and dehydration units
  • Cleaning dirty fuel gas and instrument gas
  • Controlling injection well plugging during gas flooding
  • Protecting catalysts, desiccants, and absorbants
  • Removing lube oil from ammonia gas

FAQs

1. Why should I use Pall SepraSol™ Coalescers?

Pall SepraSol™ Liquid/Gas Coalescers efficiently remove liquids and solids from contaminated gases with a range of benefits, including –

  • More rapid liquid drainage
  • Faster recovery from liquid slugs
  • Reduced capital and operating costs
  • Improved product quality and consistency
  • Fewer element changeouts needed
  • High solids removal efficiency
  • Reduced liquid losses
  • Optimum protection of downstream equipment



2. What are the benefits of patented oleophobic/hydrophobic treatment in SepraSol™ coalescers?

The patented oleophobic/hydrophobic treatment in SepraSol™ liquid gas coalescers offers a range of benefits. It lowers the surface energy of the medium and promotes rapid drainage of the coalesced liquids. The chemical treatment enhances the capacity for liquid challenges and results in enhanced performance, allowing for smaller systems, lower pressure drop, and improved ability to recover from liquid slugs.
